What Are Mixed Flow Fans?

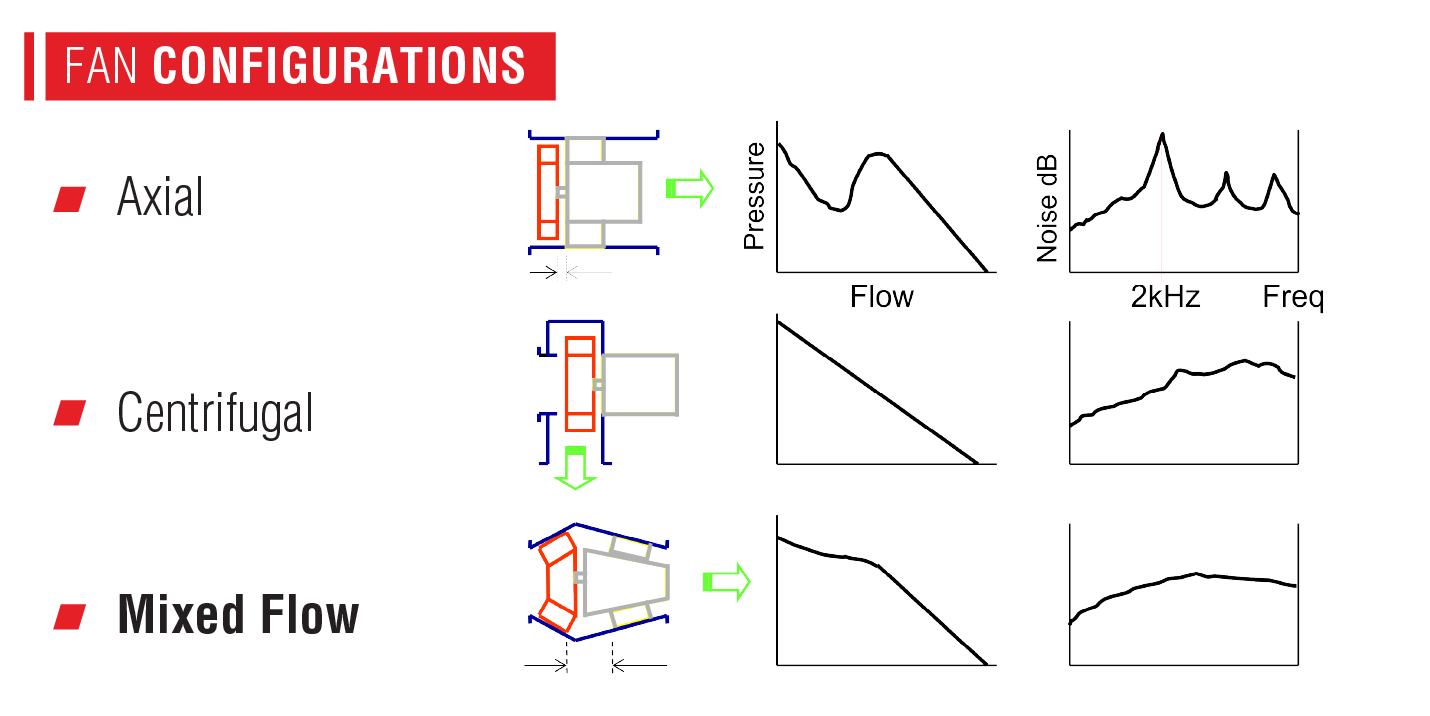

Mixed flow fans combine features of axial fans (high airflow) and centrifugal fans (high pressure) in a compact, efficient design. Unlike traditional fans, mixed flow fans are engineered to operate in tight spaces, manage variable resistance, and withstand harsh conditions such as vibration, sand, dust, and extreme temperatures, making them ideal for both aerospace and defence platforms.
The hybrid design allows mixed flow fans to move large volumes of air at higher pressures than axial fans, while remaining more compact and efficient than centrifugal fans. This combination of performance and adaptability is especially valuable in the confined, mission-critical environments of military vehicles, aircraft, and advanced defence equipment.
Our Core Applications of Mixed Flow Fans in Aerospace and Defence
1. Helicopter Main Gearbox Oil Cooling
Helicopter main gearboxes generate significant heat during operation, and maintaining optimal oil temperature is critical for flight safety and reliability. Mixed flow fans are essential for cooling these gearboxes, as they force air through dense heat exchangers, overcoming resistance to keep gearbox oil at safe temperatures. This not only protects the gearbox from overheating but also extends component life and reduces maintenance costs.
In military helicopters, where missions often involve rapid changes in altitude, speed, and load, the ability of mixed flow fans to deliver consistent performance under variable conditions is especially valuable. Their compact design also allows for integration in tight spaces, such as within engine bays or near the aircraft’s structure.
2. Avionics Cooling
Modern avionics systems, including navigation, communication, and mission control electronics, generate intense heat during operation. Effective cooling is essential to prevent overheating, which can lead to system failures or degraded performance.
Mixed flow fans provide high-pressure, targeted airflow to cool densely packed electronic components in both aircraft and defence vehicles. Their ability to maintain airflow against resistance from filters or compact ducting ensures that even the most sensitive electronics remain within safe temperature limits. Additionally, the low noise operation of mixed flow fans is particularly important in cockpit and mission-critical environments, where excess noise can interfere with communication or sensitive instrumentation.
3. Military Vehicle Engine Cooling
Military vehicles, whether tanks, armoured personnel carriers, or support trucks, often operate in extreme environments, ranging from scorching deserts to freezing arctic conditions. Engine cooling is a major challenge in these platforms, especially when vehicles are exposed to sand, dust, or other airborne contaminants.
Mixed flow fans are used in engine cooling systems for their compact size and resistance to sand and dust. Their aerodynamic blades are designed to resist erosion, ensuring long-term durability and consistent cooling performance. By maintaining optimal engine temperatures, mixed flow fans help improve vehicle reliability, extend service intervals, and support sustained operations in the field.
4. Sand Scavenge and Filtration Systems
In sandy or dusty environments, such as deserts or unpaved operational areas, airborne particles pose a significant risk to sensitive equipment and air-breathing systems. Mixed flow fans are commonly paired with vortex filter packs to remove harmful particles from intake air. Their aerodynamic geometry and robust construction allow them to resist erosion from sand and dust, maintaining performance and protecting sensitive military and aerospace systems from abrasive damage.
These systems are especially valuable in helicopters, ground vehicles, and aircraft operating in environments where sand ingestion can rapidly degrade engine and system performance. By efficiently removing contaminants, mixed flow fans help reduce maintenance requirements and extend equipment life.
5. Advanced Ventilation and Thermal Management
Beyond cooling engines and electronics, mixed flow fans play a crucial role in advanced ventilation and thermal management throughout aerospace and defence platforms. They are used to ventilate aircraft cabins, electronics bays, and mission-critical equipment enclosures, ensuring safe and comfortable operating conditions for crew and passengers. In defence applications, effective ventilation can also help manage the buildup of hazardous fumes or maintain positive pressure in sealed compartments.
Conclusion
Mixed flow fans are indispensable for modern aerospace and defence applications, delivering reliable cooling, ventilation, and thermal management in the toughest conditions. Their advanced design, durability, and adaptability ensure they meet the evolving needs of today’s military and aerospace systems. As technology advances, mixed flow fans will continue to play a pivotal role in supporting mission success, safety, and operational efficiency.
