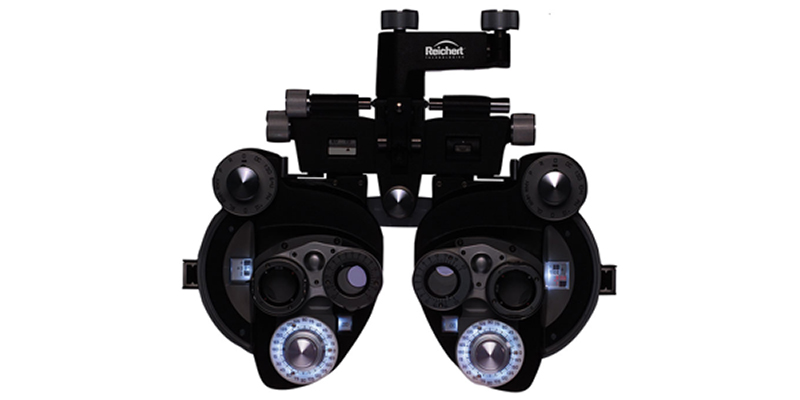

Illuminated Phoroptor®
Illuminated Refracting Instrument
Now get legendary Phoroptor® operation and construction with illuminated dials to make it easier and more efficient to perform refractions in the darkened setting of the exam room. Put away your pen light and leave the lights off throughout the entire process. The Illuminated Phoroptor features lighted sphere, cylinder power and cylinder axis scales that are easier than ever to see. The Illuminated Phoroptor utilizes cool-running, energy efficient LEDs that light only what you need to see without affecting the darkened refracting environment. The patented LED design results in maintenance-free illumination without the need to ever change a bulb.
The original and best refracting instrument, Phoroptor continues to be the industry standard after more than 100 years, offering world-renown mechanical quality and craftsmanship. The Reichert Phoroptor is the only American designed and engineered manual refracting instrument.
Every Phoroptor has that unmistakable feel of quality. The smooth rotation of the dials. The virtual absence of "play" in the mechanisms. The precise, solid click of the control knobs. These are constant reminders that you're using the world's finest refracting instrument. It's a fit and feel no one can duplicate, any more than they can duplicate the Phoroptor's optical quality, accuracy, and reliability.
While you might refer to a refracting instrument as just a "phoropter," the original, trademarked, patented and most trusted name is the Phoroptor from Reichert. We trademarked the name in 1922. The proper spelling is with an “or.” Remember, "refractor" is spelled with an "or" and so is Phoroptor.
Every Phoroptor has that unmistakable feel of quality. The smooth rotation of the dials. The virtual absence of "play" in the mechanisms. The precise, solid click of the control knobs. These are constant reminders that you're using the world's finest refracting instrument. It's a fit and feel no one can duplicate, any more than they can duplicate the Phoroptor's optical quality, accuracy, and reliability.
While you might refer to a refracting instrument as just a "phoropter," the original, trademarked, patented and most trusted name is the Phoroptor from Reichert. We trademarked the name in 1922. The proper spelling is with an “or.” Remember, "refractor" is spelled with an "or" and so is Phoroptor.
-
Details
-
Specs
-
Brochures
-
Instructions
-
Related Items
The Phoroptor® is acknowledged worldwide as the finest available. It is designed and constructed to provide a lifetime of reliable service and it incorporates refinements that result from Reichert's over 100 years of refractor experience. Purchase the instrument to which all other refractors, manual and automatic, are compared. The Reichert Phoroptor® is the first and always the best - now with LED illuminated dials.
The Illuminated Phoroptor® and the original Ultramatic RX Master™ Phoroptor® are the only refractors that carry a limited lifetime warranty - your assurance of lasting quality and enduring value.
• Precision geared rotary prism for more precise interpolation of small prism diopters
• Corrosion-resistant materials

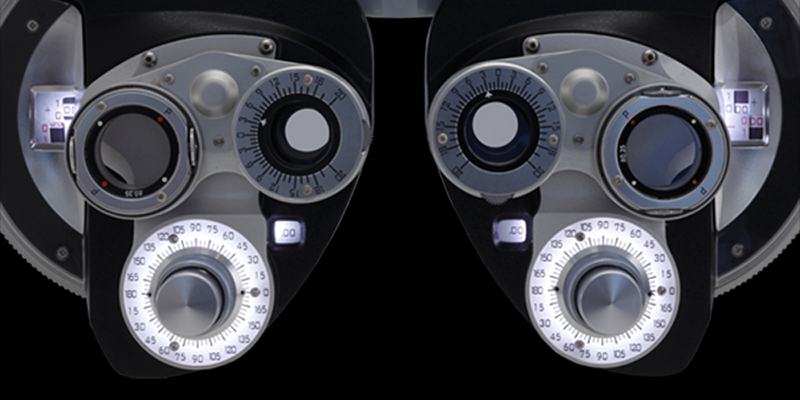

• Lighted sphere, cylinder power and cylinder axis scales are easier than ever to see
• Utilizes cool-running, energy efficient LEDs
• Light only what you need to see without affecting the darkened refracting environment
• Patented LED design for maintenance-free illumination without the need to change a bulb
• Single, easy to use illumination control
• Available in plus or minus cylinder
The Illuminated Phoroptor® and the original Ultramatic RX Master™ Phoroptor® are the only refractors that carry a limited lifetime warranty - your assurance of lasting quality and enduring value.
• Legendary feel and world-renowned mechanical quality
• American designed and engineered• Precision geared rotary prism for more precise interpolation of small prism diopters
• Corrosion-resistant materials
• Lighted sphere, cylinder power and cylinder axis scales are easier than ever to see
• Utilizes cool-running, energy efficient LEDs
• Light only what you need to see without affecting the darkened refracting environment
• Patented LED design for maintenance-free illumination without the need to change a bulb
• Single, easy to use illumination control
• Available in plus or minus cylinder
llluminated Phoroptor Catalog Numbers:
11636 Minus Cylinder - Black
11637 Plus Cylinder - Black
Included Accessories (no extra cost):
• ± .25 Flip cross cylinder
• + 1.50 Retinoscopic Lenses
• Accessory Case
• 3 pair nylon face shields
• Rotochart
• Reading rod with card holder
Optional Accessories (no extra cost)*:
Flip cross cylinder lenses:
• +.37D Flip cross cylinder
• + .50 Flip cross cylinder (Replaces the .25 flip cross cylinder lenses
Sphere:
-19.00D to +16.75D
0.25D Steps
+0.12D Sphere in auxiliary dial included
Cylinder Power:
0.00D to 6.00D
0.25D Steps
Plus or minus lens system optional 0.12D and 2.00D accessory cells included
Cylinder Axis:
360 degrees (Double 0 to 180 degrees scale)
5 degrees graduations
Cross Cylinder:
± 0.25
± 0.37 or ± 0.05 Optional
Prism:
0 to 20 Prism Diopter, 1 Prism Diopter graduations
P.D.:
48 mm to 75 mm, 1 mm graduations
Vertex Distance:
13.75 mm (normal)
Graduations extend range by 6 mm
Reading Distance:
5 to 28 inches
Centimeter and diopter scales included
Auxiliary Dial:
10 lenses plus 2 open apertures
*No extra cost applies only if stipulated at the time of order
11636 Minus Cylinder - Black
11637 Plus Cylinder - Black
Included Accessories (no extra cost):
• ± .25 Flip cross cylinder
• + 1.50 Retinoscopic Lenses
• Accessory Case
• 3 pair nylon face shields
• Rotochart
• Reading rod with card holder
Optional Accessories (no extra cost)*:
Flip cross cylinder lenses:
• +.37D Flip cross cylinder
• + .50 Flip cross cylinder (Replaces the .25 flip cross cylinder lenses
Sphere:
-19.00D to +16.75D
0.25D Steps
+0.12D Sphere in auxiliary dial included
Cylinder Power:
0.00D to 6.00D
0.25D Steps
Plus or minus lens system optional 0.12D and 2.00D accessory cells included
Cylinder Axis:
360 degrees (Double 0 to 180 degrees scale)
5 degrees graduations
Cross Cylinder:
± 0.25
± 0.37 or ± 0.05 Optional
Prism:
0 to 20 Prism Diopter, 1 Prism Diopter graduations
P.D.:
48 mm to 75 mm, 1 mm graduations
Vertex Distance:
13.75 mm (normal)
Graduations extend range by 6 mm
Reading Distance:
5 to 28 inches
Centimeter and diopter scales included
Auxiliary Dial:
10 lenses plus 2 open apertures
*No extra cost applies only if stipulated at the time of order

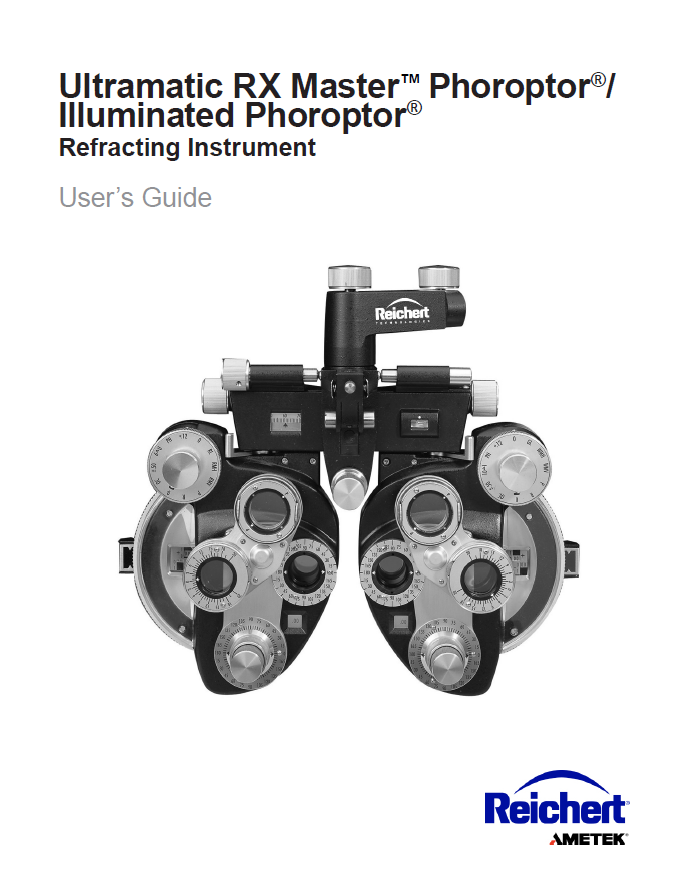

Phoroptor® - Instructions for Use – English

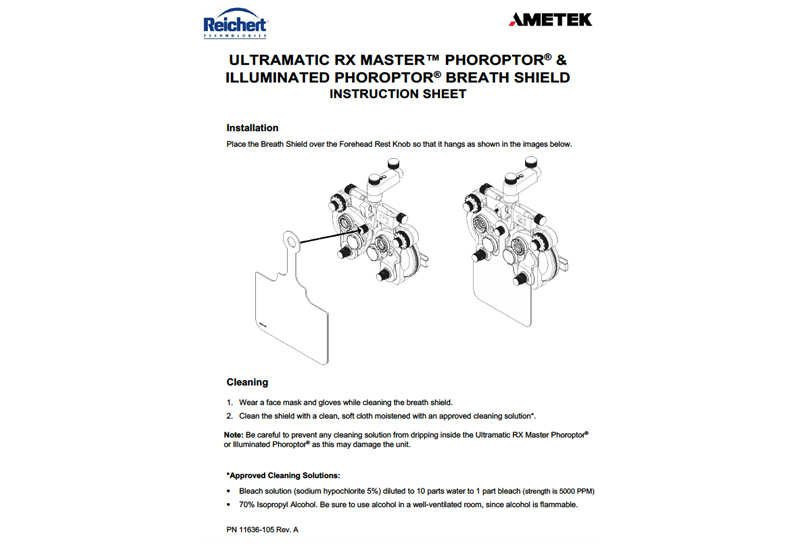

Phoroptor® Breath Shield - Installation Instructions

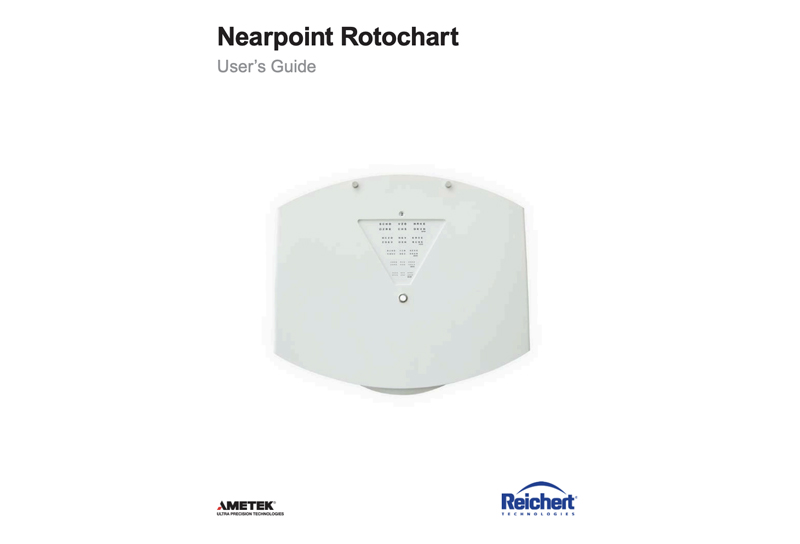

Nearpoint Rotochart - User's Guide

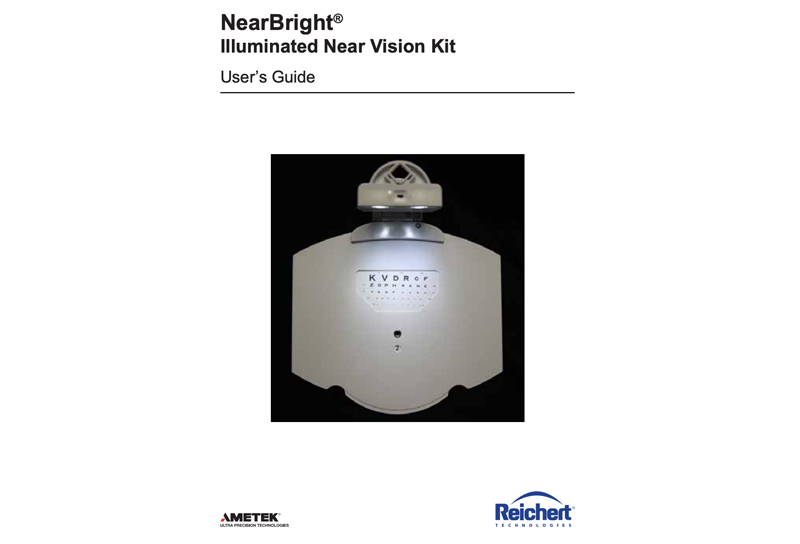

NearBright® Illuminated Near Vision Kit - User's Guide

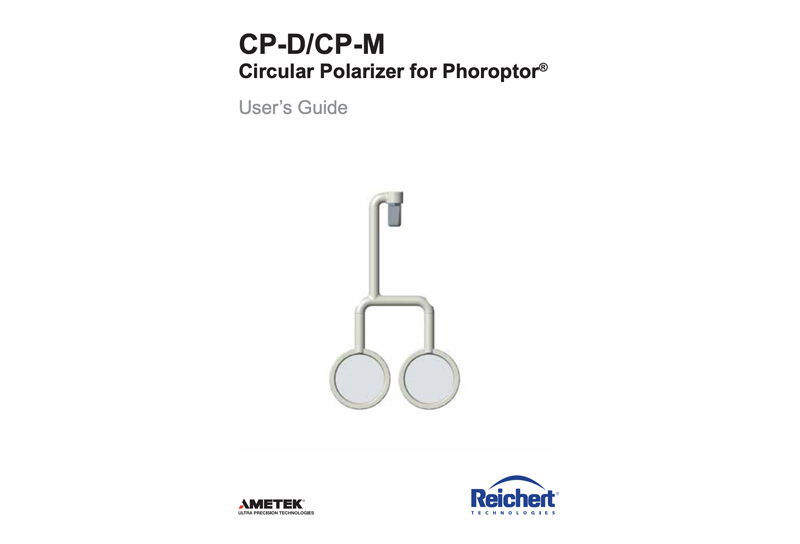

CP-D/CP-M Circular Polarizer for Phoroptor® - User’s Guide
Cleaning & Disinfection Matrix
Phoroptor® Refracting Instrument - User's Guide - Portuguese

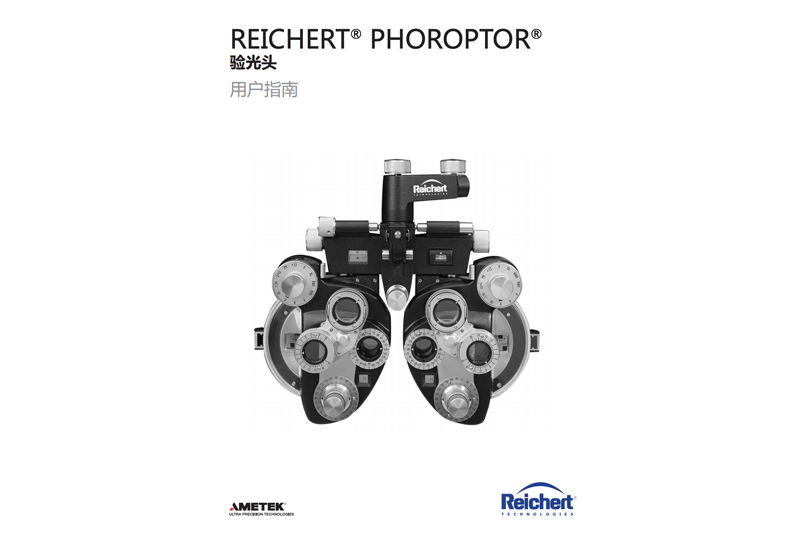

Phoroptor® Refracting Instrument - User's Guide - Chinese

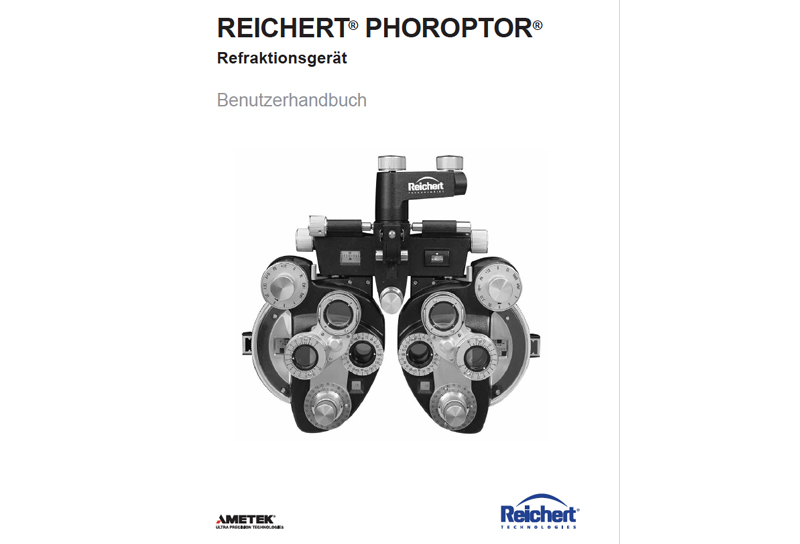

Phoroptor® Refracting Instrument - User's Guide - German

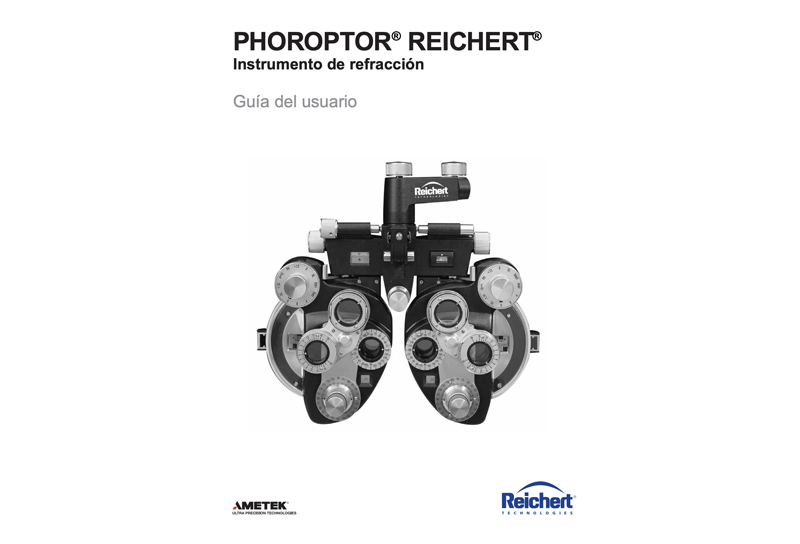

Phoroptor® Refracting Instrument - User's Guide - Spanish
Title
Document
Download

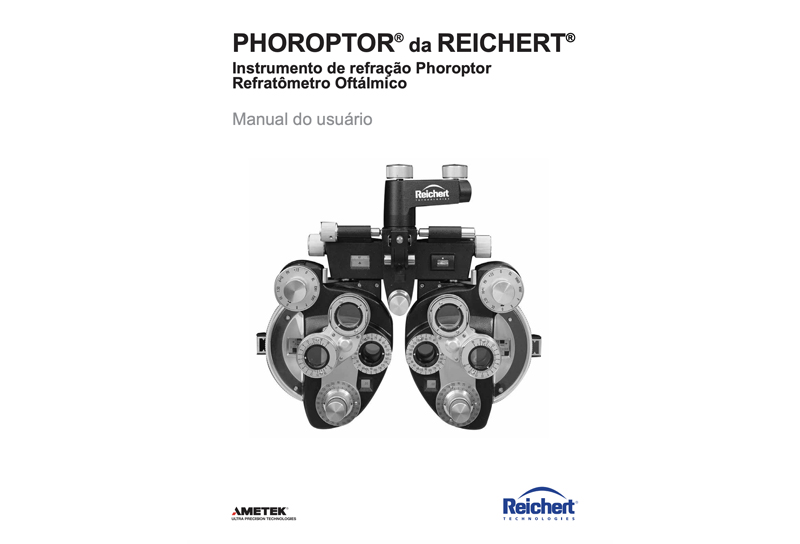

Phoroptor® Refracting Instrument - User's Guide - Portuguese
Document11625-101-POR-C
Download Download
ClearChart® 4
Digital Acuity System
Purpose-built and pixel-perfect, ClearChart® family of digital acuity systems. ClearChart® 4 meets all of your acuity testing needs with a wide selection of optotypes and special test charts.
ClearChart® 4P
Polarized Digital Acuity System
Purpose-built and pixel-perfect, ClearChart® family of digital acuity systems. ClearChart® 4P meets your polarized acuity testing needs with a wide selection of optotypes, special test charts, and enhanced features.
ClearChart® 4X
Enhanced Digital Acuity System
Purpose-built and pixel-perfect, ClearChart® family of digital acuity systems. ClearChart 4X meets your acuity testing needs with a wide selection of optotypes, special test charts, plus enhanced features.
LensChek® Plus
Digital Lensometer®
The LensChek® Plus - Digital Lensometer®, part of the VisionChek™ Digital Exam Suite, combines technology and simplicity of lens measurement, at the core of your exam.
LensChek® Pro
Digital Lensometer® with PD + UV
The all-new LensChek Pro Digital Lensometer with PD + UV, part of the VisionChek Digital Exam Suite, combines technology and simplicity of lens measurement, at the core of your exam.

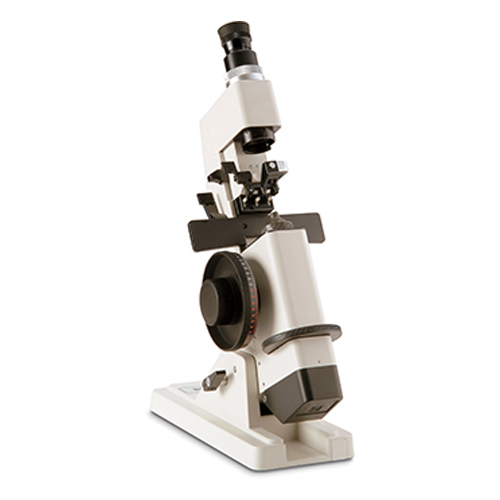

ML1
