The Phoroptor^® is acknowledged worldwide as the finest available. It is designed and constructed to provide a lifetime of reliable service and it incorporates refinements that result from Reichert's over 100 years of refractor experience. Purchase the instrument to which all other refractors, manual and automatic, are compared. The Reichert Phoroptor^®is the first and always the best.

The original Ultramatic RX Master™ Phoroptor® and the Illuminated Phoroptor® are the only refractors that carry a limited lifetime warranty - your assurance of lasting quality and enduring value.

  • American designed and engineered
  •  Precision geared rotary prism for more precise interpolation of small prism diopters
  •  Corrosion-resistant materials
  •  Available in plus or minus cylinder

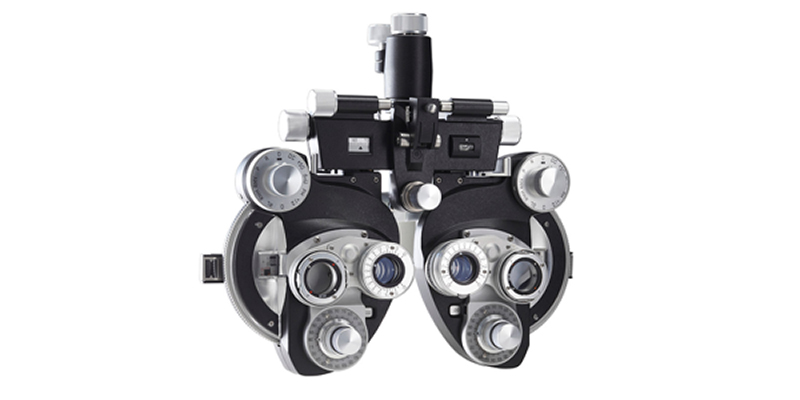

Ultramatic RX Master Phoroptor Catalog Numbers:
11625B Minus Cylinder - Black
11635B Plus Cylinder - Black

Included Accessories (no extra cost):
± .25 Flip cross cylinder
+ 1.50 Retinoscopic Lenses
Accessory Case
3 pair nylon face shields
Rotochart
Reading rod with card holder

Sphere:
-19.00D to +16.75D
0.25D Steps
+0.12D Sphere in auxiliary dial included

Cylinder Power:
0.00D to 6.00D
0.25D Steps
Plus or minus lens system optional 0.12D and 2.00D accessory cells included

Cylinder Axis:
360 degrees (Double 0 to 180 degrees scale)
5 degrees graduations

Cross Cylinder:
± 0.25

Prism:
0 to 20 Prism Diopter, 1 Prism Diopter graduations

P.D.:
48 mm to 75 mm, 1 mm graduations

Vertex Distance:
13.75 mm (normal)
Graduations extend range by 6 mm

Reading Distance:
5 to 28 inches
Centimeter and diopter scales included

Auxiliary Dial:
10 lenses plus 2 open apertures


Limited Lifetime Warranty

What and Who is Covered
The Phoroptor is warranted to be free from material and workmanship defects, under normal use, for as long as the original purchaser owns the instrument. A dealer shall not be considered an original purchaser. This warranty applies to all new products purchased after November 1, 2001.

What is Required of the Purchaser
Product registration (or possession of original receipt) and proof of regular instrument service (performed by Reichert or by an authorized Reichert dealer) are required for any claim under the limited lifetime warranty. Regular instrument service must be performed at least every three years and is defined as, at a minimum, thorough evaluation of all mechanisms, cleaning in accordance with Reichert approved procedures, and lubrication and adjustment as required. Product registration can be accomplished via mail, fax, or Internet (www.reichert.com). Records of service performed by Reichert will be maintained for the customer at the factory. Records of service performed by an authorized Reichert dealer must be maintained by the customer.

What is not Covered
Cleaning and lubrication are required on a regular basis and are not covered under this warranty; nor are dust covers, face shields, and other consumable items; nor does this warranty apply to product which has been tampered with, altered in any way, misused, damaged by accident or negligence, or which has the serial number altered or removed; nor shall this warranty be extended to a product installed or operated
in a manner not in accordance with the Reichert instruction manual; nor to a product that has been sold, serviced, installed or repaired other than by Reichert or by an authorized Reichert Ophthalmic Instrument Dealer. Furthermore, Reichert shall not be liable for costs of procurement of substitute goods by anyone.

*No extra cost applies only if stipulated at the time of order
